Bosch Purion 400 Display (BHU3500) - EB1310000H

Description

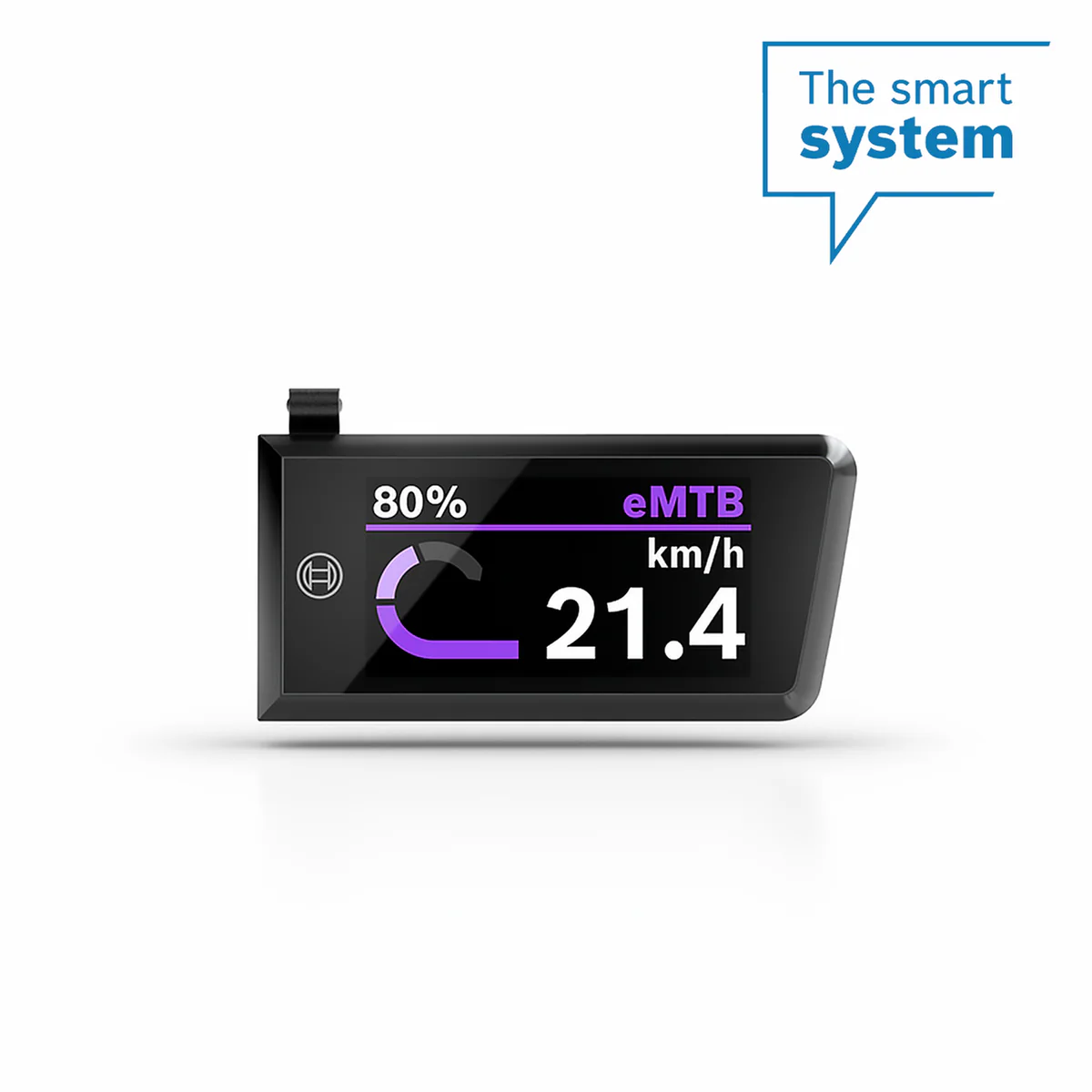

The Bosch Purion 400 Display Smart System - single is a compact and minimalist component for your eBike with Bosch Smart System

Hardware facts:

• Transmissive 1.6-inch TFT display (320 x 160 pixels)
• IP55 protected against water splash and dust

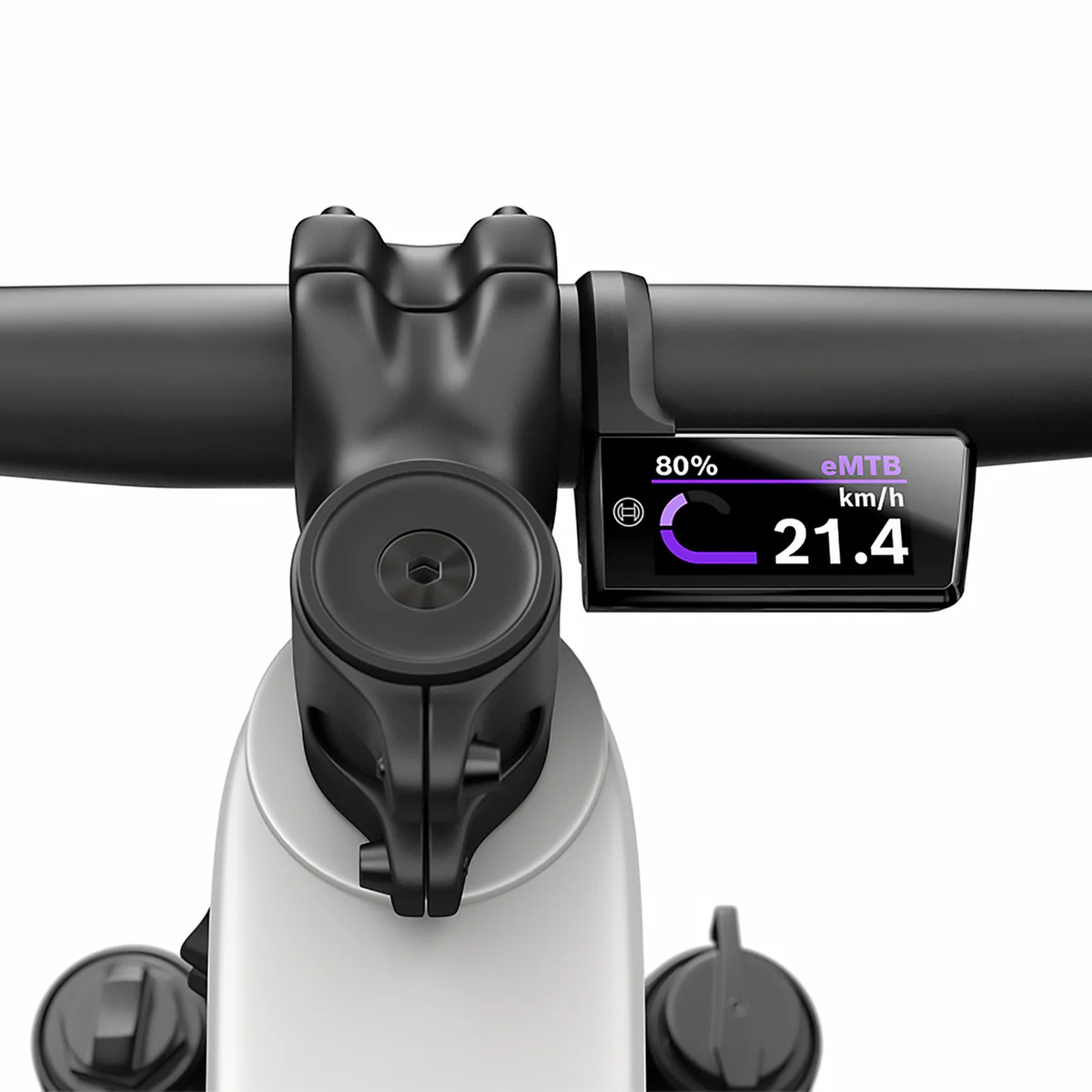

• Positioned in the handlebar triangle to protect the display
• Operation via the LED Remote or Mini Remote (in conjunction with the System Controller)
• Audible signals for system cues

Connectivity facts:

• Recording activities via LED Remote, System Controller and eBike Flow app
• Remaining range overview depending on the various riding modes
• Warnings if state of charge of the phone drops below 30%
• Customisation of the status bar (display of state of charge, time or speed)
• Software updates via eBike Flow app
• Additional features: Shift recommendation, display of riding and fitness data, display when walk assistance and light are activated

Installation Examples...

Case 1: Fitting the Bosch Purion 400 to an ebike with Bosch Mini Remote

Initial situation:

• Ebike with Bosch Smart System
• Control unit: Bosch Mini Remote + Bosch System Controller
• Display cable routed from frame through stem to handlebars

Parts required:

• Bosch Purion 400 with handlebar clamp 31.8 mm or 35 mm
• Mounting screw
• Dummy plug
• Additional Y-display cable, length 800 mm or 950 mm

Case 2: Fitting the Bosch Purion 400 to an ebike with Bosch LED Remote

Initial situation:

• Ebike with Bosch Smart System
• Control unit: Bosch LED Remote

Parts required:

• Bosch Purion 400 with handlebar clamp 31.8 mm or 35 mm
• Mounting screw
• Additional display cable, length approx. 250 mm
• We do sell other cable lengths also.

Scope of delivery:

• 1x Display
• 1x Operating and installation instructions
