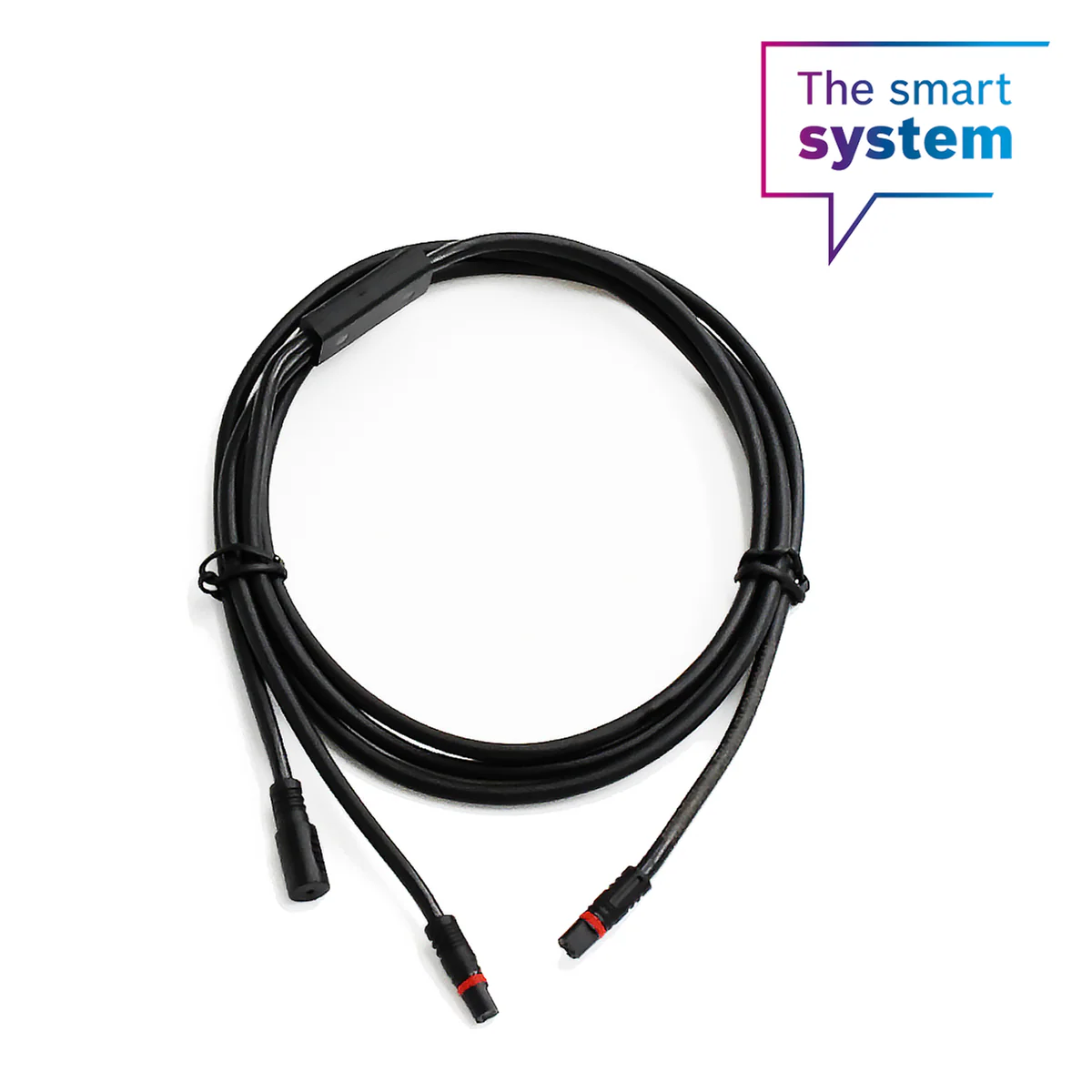

Bosch Y cable 950 mm For Purion 400 etc (BCH3614_950) - EB1212007B

Description

Needed for installing the Purion 400 - see example cases below

Suitable for

• BRC3100
• BDS32YY
• BHU3500

Installation Examples...

Case 1: Fitting the Bosch Purion 400 to an ebike with Bosch Mini Remote

Initial situation:

• Ebike with Bosch Smart System
• Control unit: Bosch Mini Remote + Bosch System Controller
• Display cable routed from frame through stem to handlebars

Parts required:

• Bosch Purion 400 with handlebar clamp 31.8 mm or 35 mm
• Mounting screw
• Dummy plug
• Additional Y-display cable, length 800 mm or 950 mm

Case 2: Fitting the Bosch Purion 400 to an ebike with Bosch LED Remote

Initial situation:

• Ebike with Bosch Smart System
• Control unit: Bosch LED Remote

Parts required:

• Bosch Purion 400 with handlebar clamp 31.8 mm or 35 mm
• Mounting screw
• Additional display cable, length approx. 250 mm
• We do sell other cable lengths also.

Scope of delivery:

• 1x Y cable, 950 mm
